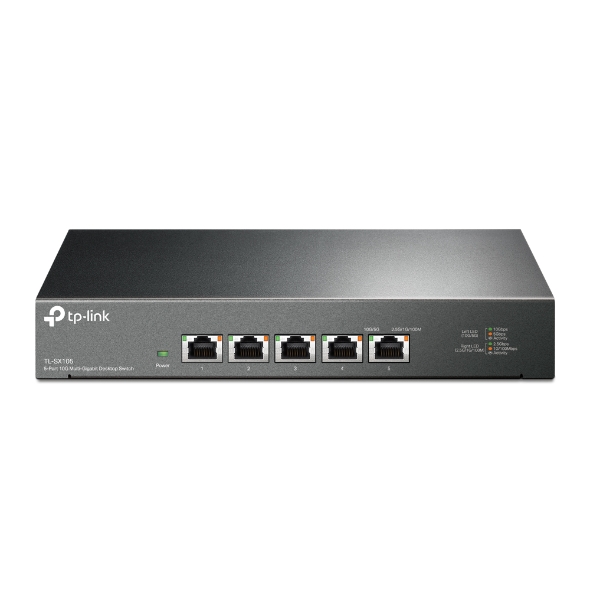

TP-Link TL-SX105 - 5-Port 10G Multi-Gigabit Desktop Switch
Výrobce
TP-LINK
Part No.
TL-SX105
Kód
794377
Five 10 Gbps Ports. 5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 100 Gbps of switching capacity. Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G
Dostupnost
Dostupnost na pobočkách
Záruka
5 Roky
Zařazení produktu
Diskuse (0)
Facebook Diskuse
Související dokumenty
Podrobnosti o produktu
Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
Ideal for Various Scenarios. Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations.
Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
Silent Operation. The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business.
Durable Metal Casing. Durable metal casing, desktop/wall-mounting, and professional heat dissipation design are well suited for different environments.
Plug and Play. Allows for easy deployment without the need for a technician.
HARDWARE FEATURES
Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
Interface 5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless

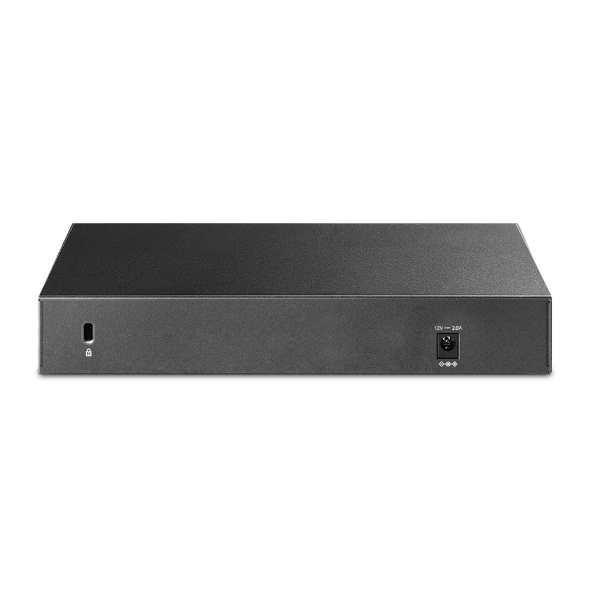

External Power Supply External Power Adapter (Output: 12 VDC / 2.0 A)
LED Indicator • System Power: 1
• Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
Dimensions ( W x D x H ) 8.9×5.2×1.4 in (226×131×35 mm)
Max Power Consumption 21.4 W
PERFORMANCE
Switching Capacity 100 Gbps
Packet Forwarding Rate 74.4 Mpps
MAC Address Table 32 K
Packet Buffer Memory 2 Mb
Jumbo Frame 10 KB
SOFTWARE FEATURES
Advanced Features • 802.3X Flow Control
• 802.1p/DSCP QoS
Transfer Method Store and Forward
OTHERS
Certification CE, FCC ,RoHS
Package Contents • 5-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX105
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Environment • Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
