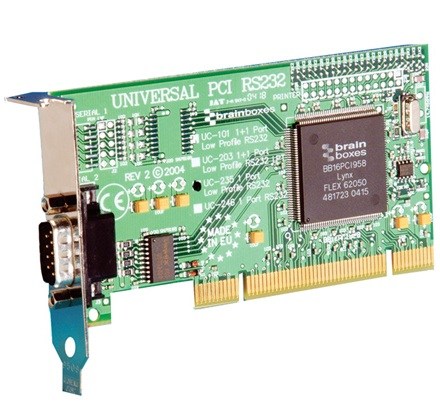

Lenovo Serial adapter Brainboxes UC-235 PCI low profile - seriový port RS232/DB9

Lenovo Serial adapter Brainboxes UC-235 PCI low

Výrobce
Lenovo
Part No.

0A61318

Kód

729612

Port Ports1 ProtocolRS232 ConnectorDB9 Connector - 9 Pin Male UARTBrainboxes 16C958 UART Compatibility16750/16550/16450 backwards compatible as well as an enhanced 950 mode Tx FIFO Size128 Rx FIFO Size128 Operating DistanceEIA - RS232 Standard Ca

Dostupnost
Dostupnost na pobočkách
Záruka
12 Měsíce

    Podrobnosti o produktu

    Port
    Ports1
    ProtocolRS232
    ConnectorDB9 Connector - 9 Pin Male
    UARTBrainboxes 16C958
    UART Compatibility16750/16550/16450 backwards compatible as well as an enhanced 950 mode
    Tx FIFO Size128
    Rx FIFO Size128
    Operating DistanceEIA - RS232 Standard
    CableNo Cable; Integrated Connector
    Port Settings
    Max Baud Rate115,200
    Data Bits5,6,7 or 8
    ParityOdd, Even, None, Mark or Space
    Stop Bits1, 1.5 or 2
    Flow ControlRTS/CTS, DSR/DTR, XON/XOFF
    Tx/Rx ModesPoint to Point
    General
    PCB Layers4
    Form FactorLow Profile
    Includes Printer PortNo
    Opto IsolatedNo
    Power Consumption 190mA @ 5V, 12mA @ 12V
    Product Weight 0.062 kg, 0.14 pounds
    Product Dimensions 132(l) x 18(w) x 80(h) mm


    Podporované OS : Windows XP, 2000, Vista, 7, Server 2008, Server 2003, MS DOS
