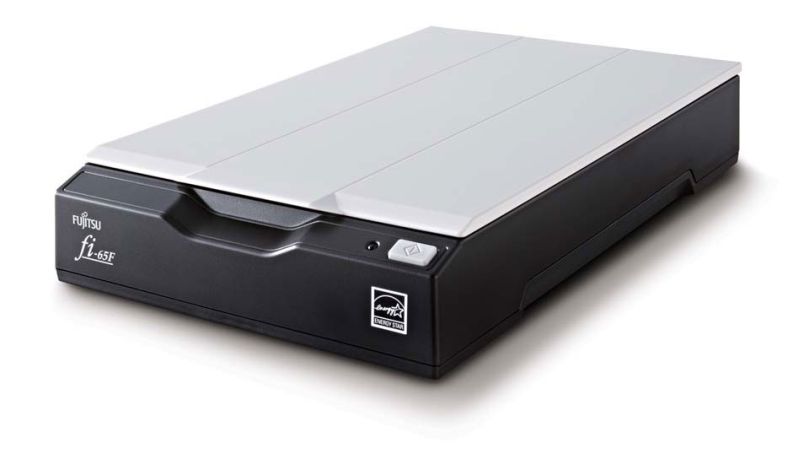

Fujitsu fi-65F, A6, passport scanner - skener na doklady

Technická podpora skenerů Fujitsu: Tel. +420 251 025 400

Ideal counter top scanner for use in the medical, financial, leisure, transportation, education and government sectors or any customer-facing applications that have the need to instantly capture small format material such as passports, driving licences, identification or insurance cards

Supported operating systems Windows® 8, Windows® 7, Windows Vista®, Windows® XP, Windows Server® 2012, Windows Server® 2008
Scanner type Flatbed
Scanning modes Simplex, Colour / Greyscale / Monochrome
Image sensor type Colour CIS (Contact Image Sensor) (CMOS CIS)
Light source RGB LED (variable light source)
Document size Maximum: A6 (105 x 148 mm)
Scanning speed with AC Adapter Colour 1.7 seconds (200 dpi)
(A6 Portrait)*1 Greyscale / Monochrome 1 second (200 / 300 dpi)
Scanning speed USB bus powered*2 Colour 2 seconds (200 dpi)
(A6 Portrait)*1 Greyscale / Monochrome 2 seconds (200 / 300 dpi)
Background Colours Black
Optical resolution 600 dpi
Output resolution Colour / Greyscale / Monochrome 50 to 600 dpi (adjustable by 1 dpi increments)
Output format Colour: 24-bit, Greyscale: 8-bit, Monochrome: 1-bit
AD converter 65,536 levels (16-bit)
Interface / Connector shape USB2.0 / USB1.1 / B type
Power requirements AC 100 to 240 V ±10%
Power consumption AC Adapter Operating mode: 8 W or less / Sleep mode: Less than 2 W or less / Auto standby (off) mode: 0.5 W or less
USB bus powered Operating mode: 5 W or less / Sleep mode: Less than 2 W or less / Auto standby (off) mode: 0.5 W or less
Operating environment Temperature: 5 to 35 °C / Relative humidity: 20 to 80% (Non-condensing)
Dimensions Width x Depth x Height 145 x 234 x 40 mm (when closed)
Weight 0.9 kg
Included software / drivers PaperStream IP (TWAIN / ISIS) driver, PaperStream Capture, Software operation panel
Environmental compliance ENERGY STAR® and RoHS
Others Document cover Included (removable)
Power button Available (rear panel of scanner)
Included items AC cable, AC adapter, USB cable, USB bus-power cable, Setup DVD-ROM, Safety Precautions


Vhodnou verzi SW Kofax Express naleznete na http://scadmin.kofax.com/KCSearch/Search.aspx

Key features
•Compact A6 flatbed design suitable for front counter scanning of items such as passports, driving licences, Identification cards and more
•Verify personal identity accurately and speedily – perfect for capturing small documents
•Convenient power on/off button and USB power via high speed USB 2.0 interface
•Mono, greyscale and colour document scanning (1–2 seconds per A6 page)
•Can be used with or without cover for easier operation
•Automatic deskew and cropping of scanned documents, even with open lid
•Featuring unique PaperStream IP (TWAIN/ISIS) And PaperStream Capture software for superb image processing


The ultra compact fi-65F from Fujitsu has been especially designed for easy and quick scanning of single, small format documents. With impressive convenience the fi-65F redefines small document scanning within customer facing environments. Scan A6 black and white documents in 1 second, colour documents in
1.7 seconds at 200 dpi
Compact size and flexible usage for hassle free and instant digitisation
Can be optionally powered by USB for further flexibility
PaperStream IP and PaperStream- Capture for high performance and automatic image enhancement
