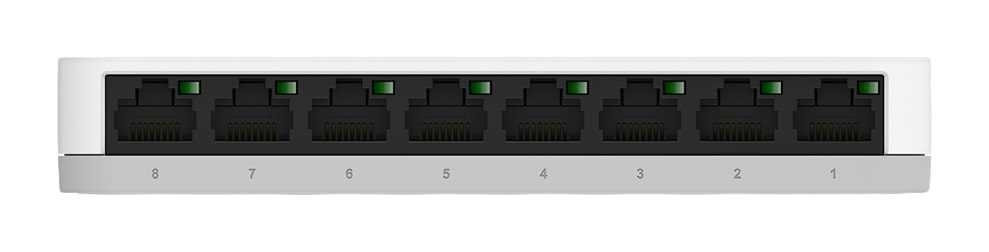

D-Link GO-SW-8G/E 8-Port GIGABIT EASY DESKTOP SWITCH

D-Link GO-SW-8G/E 8-Port GIGABIT EASY DESKTOP

Výrobce
D-Link
Part No.

GO-SW-8G/E

Kód

746947

OVERVIEW The 8-Port Gigabit Easy Desktop Switch (GO-SW-8G) offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your netw

Dostupnost
Dostupnost na pobočkách
Záruka
2 Roky

    Podrobnosti o produktu

    OVERVIEW
    The 8-Port Gigabit Easy Desktop Switch (GO-SW-8G) offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.

    SPECIFICATIONS
    Switching Fabric
    • 16Gbps

    Standards
    • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
    • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
    • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
    • ANSI/IEEE 802.3 NWay auto-negotiation
    • IEEE 802.3x Flow Control
    • IEEE 802.3az Energy-Efficient Ethernet (EEE)

    Protocol
    • CSMA/CD

    Data Transfer Rates
    • Ethernet:
    • 10 Mbps (half duplex), 20 Mbps (full duplex)
    • Fast Ethernet:
    • 100 Mbps (half duplex), 200 Mbps (full duplex)
    • Gigabit Ethernet:
    • 2000 Mbps (full duplex)

    Topology
    • Star

    Network Cables
    • 10BASE-T:
    • UTP CAT 3, 4, 5/5e (100 m max.)
    • EIA/TIA-586 100-ohm STP (100 m max.)
    • 100BASE-TX, 1000BASE-T:
    • UTP CAT 5/5e (100 m max.)
    • EIA/TIA-568 100-ohm STP (100 m max.)

    Media Interface Exchange
    • Auto MDI/MDIX adjustment for all ports

    LED Indicators
    • Per port: Link/Activity/Speed
    • Per device: Power

    Transmission Method
    • Store-and-forward

    MAC Address Table
    • 8K

    MAC Address Learning
    • Automatic update

    Packet Filtering/Forwarding Rates
    • Ethernet: 14,880 pps per port
    • Fast Ethernet: 148,800 pps per port
    • Gigabit Ethernet: 1,488,000 pps per port

    RAM Buffer
    • 128KB per device

    Jumbo Frames
    • 9,216 Bytes

    DC Input
    • External 5 V/1 A Level "V" Power Adapter

    Power Consumption
    • DC input: 3.06 watts
    • AC input: 3.9 watts

    MTBF
    • 412,433 hours

    Operating Temperature
    • 0 to 40 °C

    Storage Temperature
    • -10 to 70 °C

    Operating Humidity
    • 10% to 90% RH non-condensing

    Storage Humidity
    • 5% to 90% RH non-condensing

    Dimensions
    • 128 x 68.5 x 25.4 mm
    Weight
    • 195 grams

    Certifications
    • FCC Class B
    • ICES-003 Class B
    • CE Class B
    • C-Tick Class B
    • VCCI Class B
    • cUL/UL
    • CCC
    • Anatel
    • LVD
