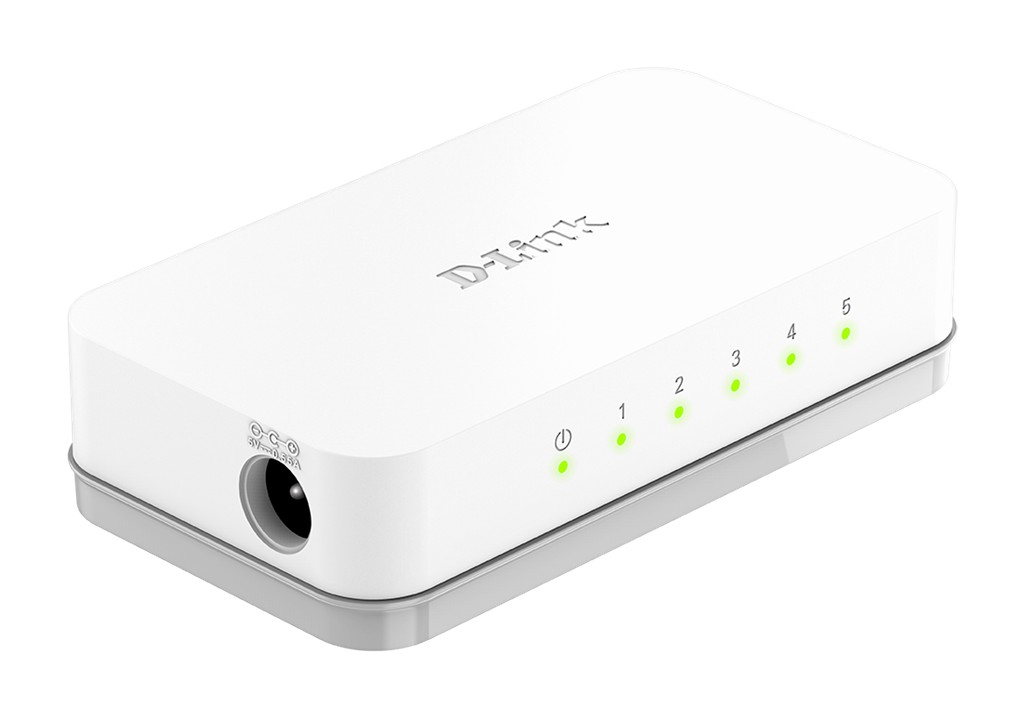

D-Link GO-SW-5E 5-Port 10/100M DESKTOP SWITCH

D-Link GO-SW-5E 5-Port 10/100M DESKTOP

Výrobce
D-Link
Part No.

GO-SW-5E/E

Kód

658845

Dostupnost
Dostupnost na pobočkách
Záruka
2 Roky

    Podrobnosti o produktu

    D-Link GO-SW-5E 5-Port Fast Ethernet Easy Desktop Switch OVERVIEW The dlinkgo GO-SW-5E 5-Port Fast Ethernet Easy Desktop Switch allows you to quickly set up a fast, reliable, and efficient wired network in your home or office. The GO-SW-5E is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. Connect the GO-SW-5E to multiple computers to share files and folders, or connect it to a router to share an Internet connection. SPECIFICATIONS Standards • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x flow control IEEE 802.3u • 100BASE-TX Fast Ethernet (twisted-pair copper) • IEEE 802.3az EEE power saving Switching Fabric • 1 Gbps switching fabric Topology • Star Protocol • CSMA/CD Data Transfer Rates • Ethernet o 10 Mbps (half duplex) o 20 Mbps (full duplex) • Fast Ethernet o 100 Mbps (half duplex) o 200 Mbps (full duplex) Media Interface Exchange • Auto MDI/MDIX adjustment for all ports Network Cables • 10BASE-T: o UTP CAT 3/4/5/5e (100 m max.) o EIA/TIA-586 100-ohm STP (100 m max.) • 100BASE-TX o UTP CAT 5/5e (100 m max.) o EIA/TIA-568 100-ohm STP (100 m max.) LED Indicators • Per port: Link/Activity • Per device: Power Transmission Method • Store-and-forward MAC Address Table • 2K entries per device MAC Address Learning • Automatic update Packet Filtering/Forwarding Rates • Ethernet: 14,880 pps per port • Fast Ethernet: 148,800 pps per port RAM Buffer • 48 KB per device Dimensions • 87 x 47.85 x 21.7mm DC Input • External 5V/0.55A power adapter Power Consumption • Power On (Standby): o DC input: 0.1 watts o AC input: 0.69 watts • Maximum: o DC input: 0.9 watts o AC input: 1.6 watts Heat Dissipation • Power On (Standby) o AC input: 2.355 BTU/h Maximum o AC input: 5.461 BTU/h Temperature • Operating: 0 to 40 °C • Storage: -10 to 70 °C Humidity • Operating: 10% to 90% RH non-condensing • Storage: 5% to 90% RH non-condensing Certifications • FCC Class B • CE Class B • UL • C-Tick Class B • CB
