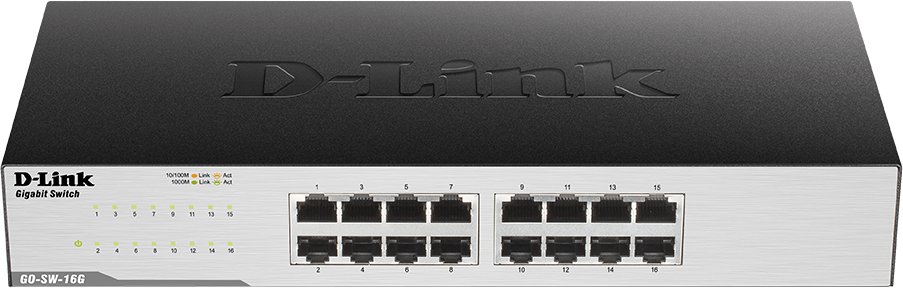

D-Link GO-SW-16G 16-Port GIGABIT DESKTOP SWITCH

D-Link GO-SW-16G
16-Port Unmanaged Gigabit Switch

OVERVIEW
The D-Link GO-SW-16G 16-Port Unmanaged Gigabit Switch and GO-SW-24G 24-Port Unmanaged Gigabit Switch each offer an economical way for SOHO and small to medium businesses (SMB) to deploy an energy-efficient switch that features the increased bandwidth of Gigabit ports.

SPECIFICATIONS
GENERAL
Number of Ports
• Sixteen 10/100/1000 Gigabit ports

Standards
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control

Data Tranfer Rates
Ethernet:
• 10 Mbps (half duplex)
• 20 Mbps (full duplex)

Fast Ethernet:
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)

Gigabit Ethernet:
• 2000 Mbps (full duplex)

Network Cables
10BASE-T:
• UTP CAT 3, 4, 5/5e (100 m max)
• EIA/TIA-586 100-ohm STP (100 m max)

100BASE-TX, 1000BASE-T:
• UTP CAT 5/5e (100 m max)
• EIA/TIA-568 100-ohm STP (100 m max)

FUNCTIONALITY
D-Link Green Features
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Link status detection power saving
• Cable length detection power saving
• RoHS Compliance

LAN Features
• Back pressure at half-duplex operation
• Auto MDI/MDIX
• Wire speed reception and transmission
• Store-and-Forward switching method
• 8K MAC addresses
• 2 Mbits RAM for data buffering
• Jumbo Frames: 9216 Bytes
• Switching Capacity 32 Gbps

Port Packet Filtering
• 10M: 14,880 pps
• 100M: 148,800 pps
• 1000M: 1,488,000 pps

PHYSICAL
LEDs
• Power LED
• 16 Link/Activity/Speed LEDs (one per port)

Power Inputs
• Switching 12V/1A level V power adapter

Power Consumption
• Power on (standby): AC input: 2.64 Watts
• Power max.: AC input: 9.00 Watts

Heat Dissipation
• Power on (Standby): AC input: 9.01 BTU/h
• Power max.: AC input: 30.717 BTU/h

MTBF
• 319,267 hours

Dimensions
• 231 x 158 x 46 mm

Weight
• 0.58 kg

Operating Temperature
• 0 to 40 °C

Storage Temperature
• -10 to 70 °C

Humidity
• 5% to 90% non-condensing

Certifications
• FCC Class A
• ICES-003 Class A
• CE Class A
• C-Tick Class A
• CB
• cUL
