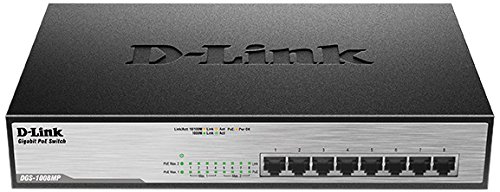

D-Link DGS-1008MP 8 Port Desktop Switch with 8 PoE Ports

Technical Specifications

General

Size

   11-inch Desktop/Rackmount size, 1U height

Number of Ports

   8 10/100/1000 Mbps Ports

Port Standards & Functions

   IEEE 802.3i 10BASE-T Ethernet
   IEEE 802.3u 100BASE-TX Fast Ethernet
   IEEE 802.3ab 1000BASE-T Gigabit Ethernet
   IEEE 802.3at Power over Ethernet
   IEEE 802.3az Energy Efficient Ethernet
   IEEE 802.3x Flow Control supports half/full duplex mode
   ANSI/IEEE 802.3 NWay auto-negotiation

Switching Capacity

   16 Gbps switching fabric

Media Interface Exchange

   Auto MDI/MDI-X

Transmission Method

   Store-and-forward

MAC Address Table

   8K entries per device

Packet Buffer Memory

   128 KB per device

Packet Filtering / Forwarding Rates

   Ethernet: 14,880 pps per port
   Fast Ethernet: 148,800 pps per port
   Gigabit Ethernet: 1,488,000 pps per port

Data Transfer Rates

   Ethernet
   10 Mbps (half duplex)
   20 Mbps (full duplex)
   Fast Ethernet
   100 Mbps (half duplex)
   200 Mbps (full duplex)
   Gigabit Ethernet
   2000 Mbps (full duplex)

Network Cables

   10BASE-T:
   UTP CAT 3/4/5/5e (100 m max.)
   EIA/TIA-586 100-ohm STP (100 max.)
   100BASE-TX
   UTP CAT 5/5e (100 m max.)
   EIA/TIA-568 100-ohm STP (100 max.)
   1000BASE-T
   UTP CAT 5/5e(100 m max.)
   EIA/TIA-568 100-ohm STP(100 max.)

Physical

LED Indicators

   Per port: Activity / Link and Speed
   Per port: Power / Status
   PoE Max 1: Ports 1-4
   PoE Max 2: Ports 5-8

Dimensions

   280 mm x 180 mm x 44 mm (11.02 x 7.08 x 1.73 inches)

Power Input

   AC Input: 100 to 240 V AC, 50/60 Hz

Maximum PoE Budget

   140 watts

Power Consumption

   13.5 watts (PoE off)
   151 watts (PoE on)
   PoE up to 30 watts per port

Temperature

   Operating: 0 to 40 °C (32 to 104 °F)
   Storage: -10 to 70 °C (14 to 158 °F)

Humidity

   Operating: 0% to 95% RH non-condensing
   Storage: 5% to 95% RH non-condensing

EMI

   CE Class A
   FCC Class A
   VCCI Class A
   CCC Class A
   BSMI Class A

Safety

   cUL
   CB
   LVD
   CCC
   BSMI
