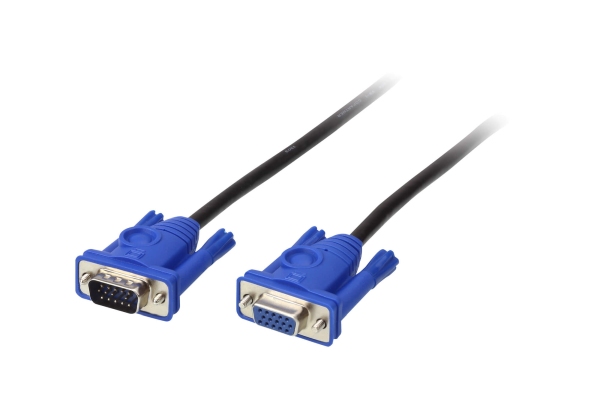

ATEN 30M VGA Cable

The VGA Cable is designed to provide a high quality VGA connection, ideally suited for high resolution applications up to 1920 x 1200. This durably constructed VGA video cable eliminates the picture ghosting and fuzzy images, guaranteeing users the ultimate A/V experiences.

Optimized for analog signal transmission
VGA cable with 15-pin male input and output
Bend Radius: 60°*
Outer shielded material: Al Mylar tape
Flame Test UL 758, CSA C22.2 No.210 compliant
Compatible with ATEN VGA products
Note:* Swings 3000 times between angles of +/- 60 degrees, at a frequency of 40 times per minute

Cable Length 30M
Conductor
Material Tinned Copper
Conductor Diameter 30 AWG
Jacketed
Material Jacket: PVC
Shielding: AL-Mylar
Connectors
Video HDB-15 Male
HDB-15 Male
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
